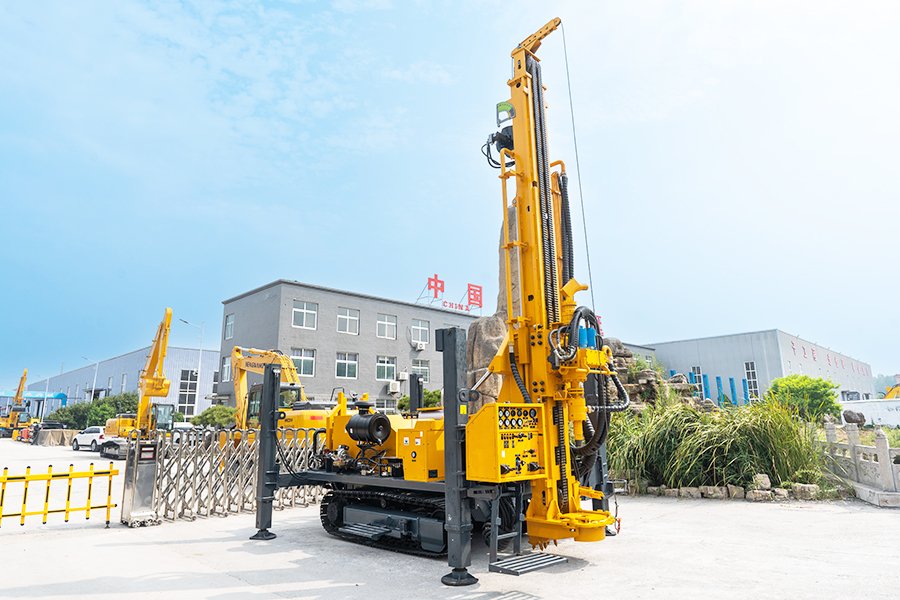

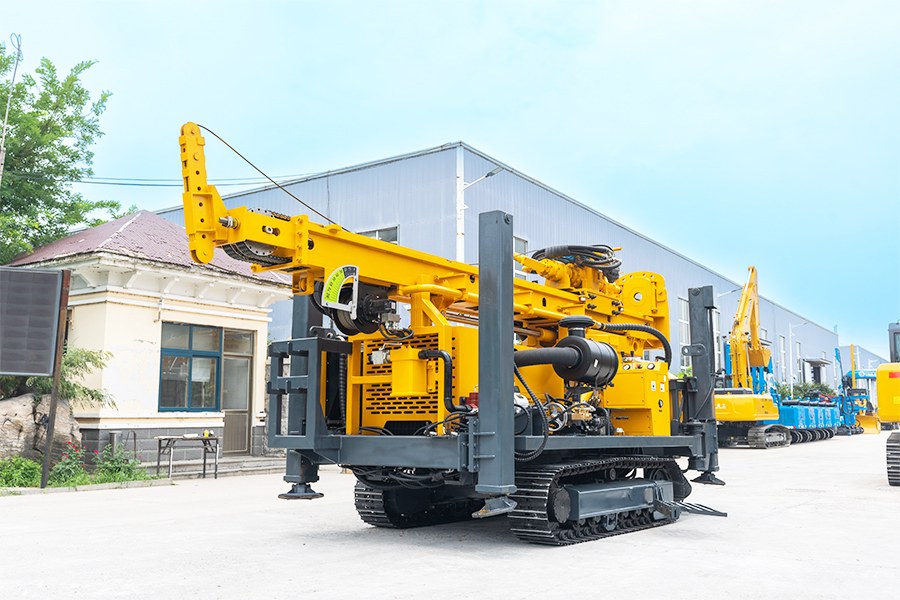

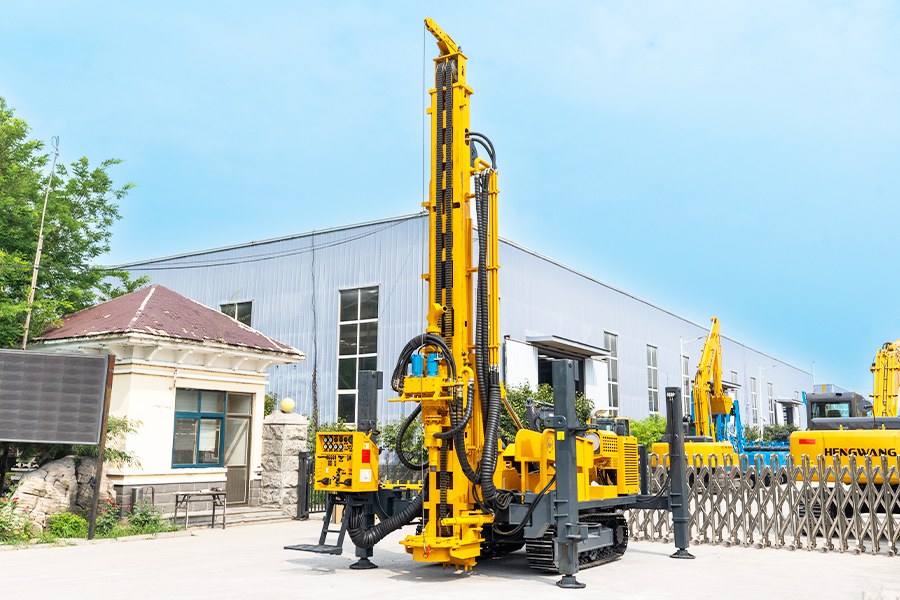

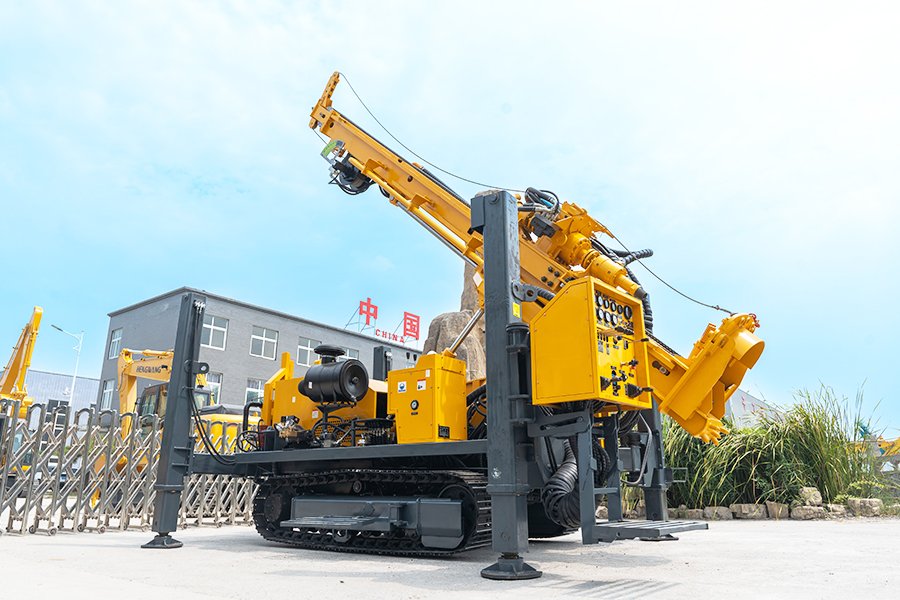

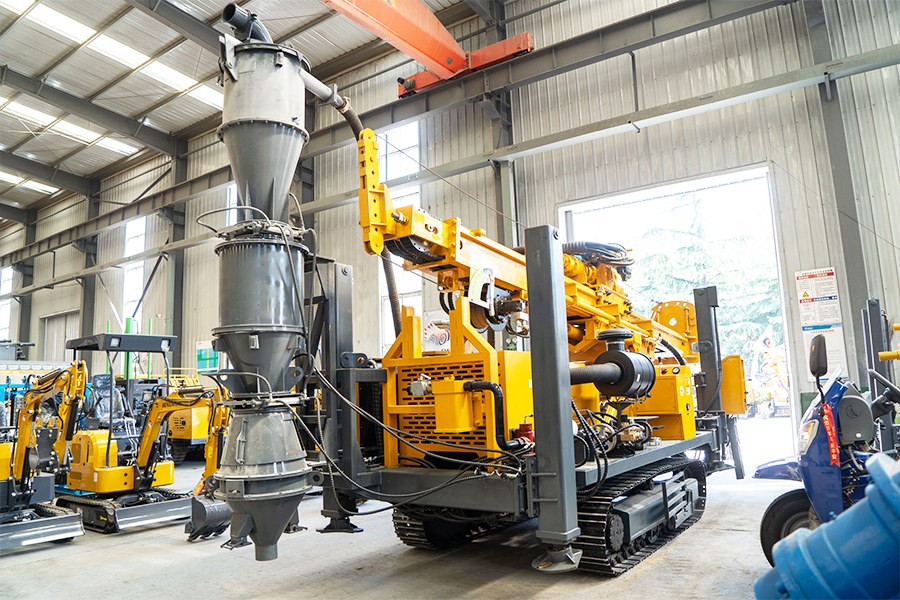

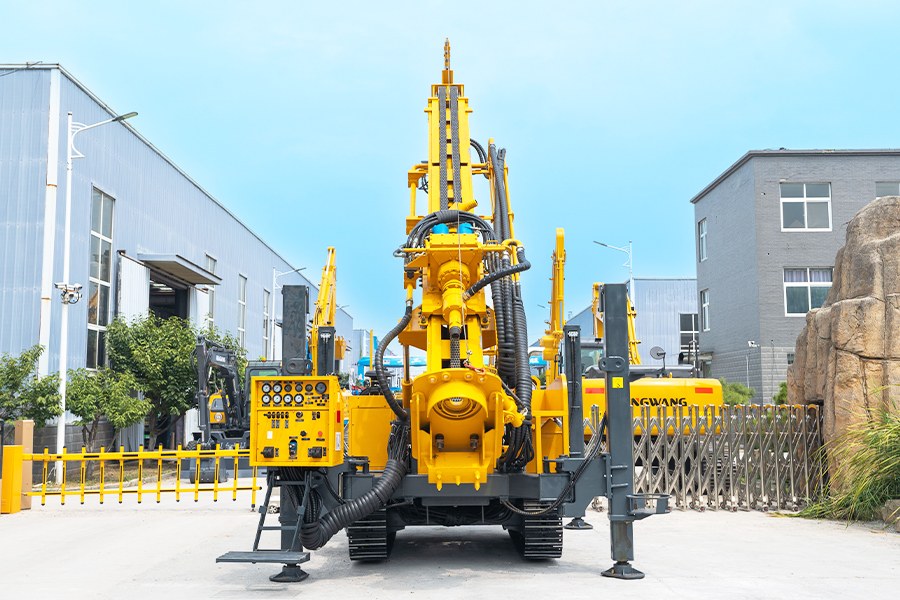

HW-RC500 Reverse Circulation Drill Rig
Drilling depth: 400m
Drilling diameter: 105-400mm
Engine Power: 132Kw
Drilling diameter: 105-400mm
Engine Power: 132Kw
Product Details
| Model | HW-RC500 |
|---|---|
| Engine | Cummins Engine |
| Power | 132 kW |
| Maximum Drilling Depth | 400 m |
| Drilling Diameter | 105–400 mm |
| Working Air Pressure (MPa) | 1.6–6MPa |
| Total Air Consumption | 16–55 m³/min |
| Drill Rod Length | 3 m |
| Drill Rod Diameter | Φ102/Φ114mm |
| Axial Pressure | 7 t |
| Lifting Capacity | 25 t |
| Slow Lifting Speed | 23m/min |
| Fast Lifting Speed | 33m/min |
| Rotational Torque | 10000/5000 Nm |
| Rotational Speed | 0–75 r/min; 0–150 r/min |
| Feed Efficiency | 10–35 m/h |
| Travel Speed | 2.5 km/h |
| Climbing Ability | 21° |
| Machine Weight | 12t |
| Dimensions | 7×2.1×2.8m |
