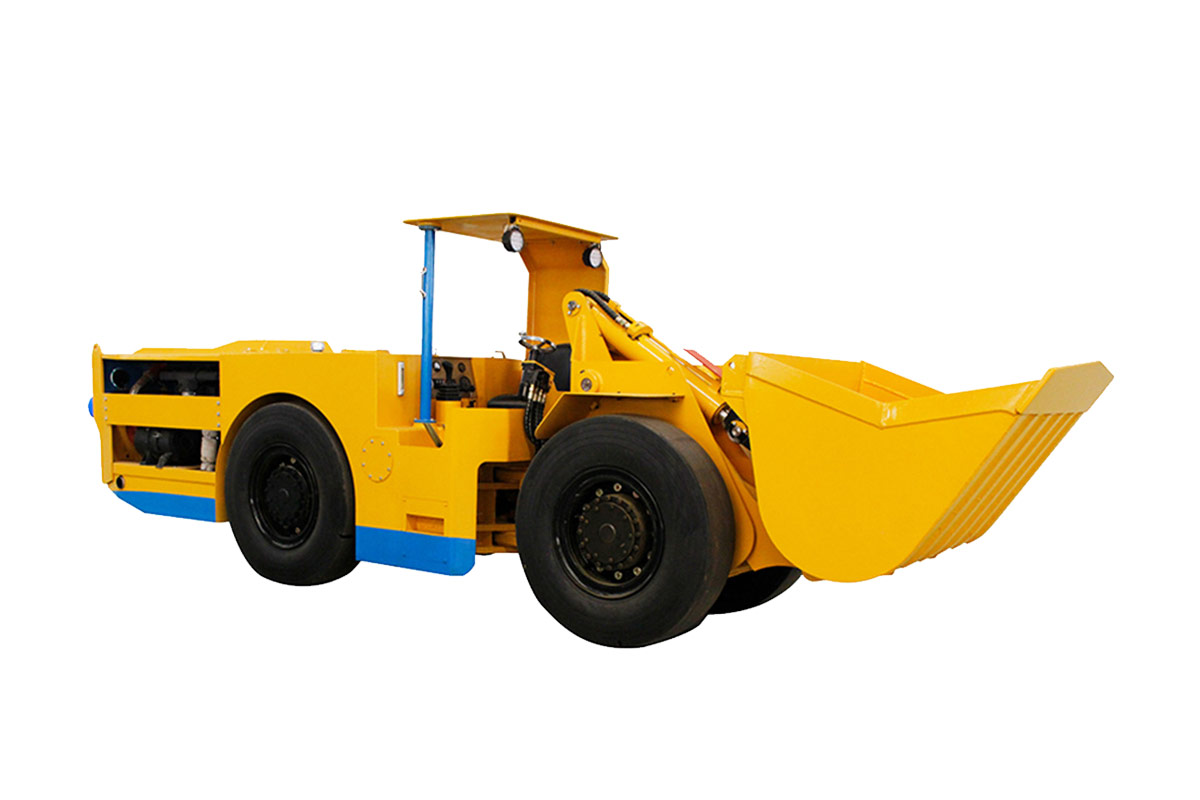

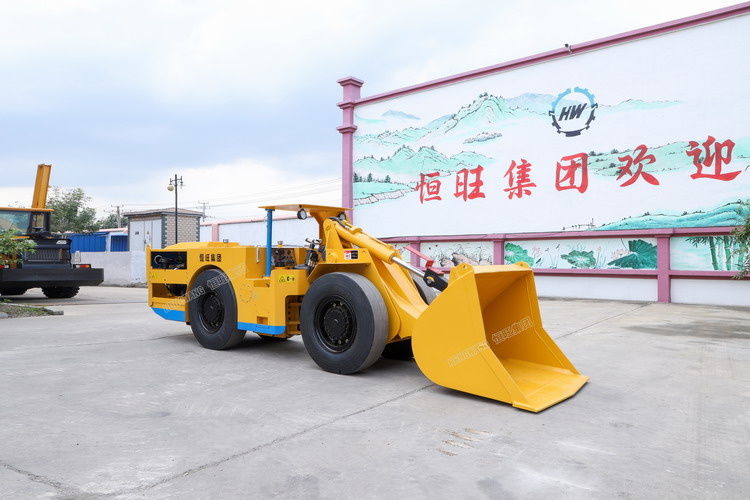

HWJ-1 Mining Load Haul Dump
Tramming Size: 6050*1300*2000
Max Lift Height: 3250mm
Max Unloading Height: 1050mm
Max Lift Height: 3250mm
Max Unloading Height: 1050mm
Product Details
HWJ-1 is a compact and lightweight Load Haul Dump (LHD) for narrow vein mining, easy to operate and maintain.
It has been engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.
| Model | HWJ-1 |
| Tramming Size | 6050*1300*2000 |
| Min Ground Clearance | 200mm |
| Max Lift Height | 3250mm |
| Max Unloading Height | 1050mm |
| Weight | |
| Operation Weight | 6750kg |
| Laden Weight | 8750kg |
| Front Axle (Empty) | 2230kg |
| Rear axle (Empty) | 4520kg |
| Front Axle (laden) | 5050kg |
| Rear Axle (laden) | 3700kg |
