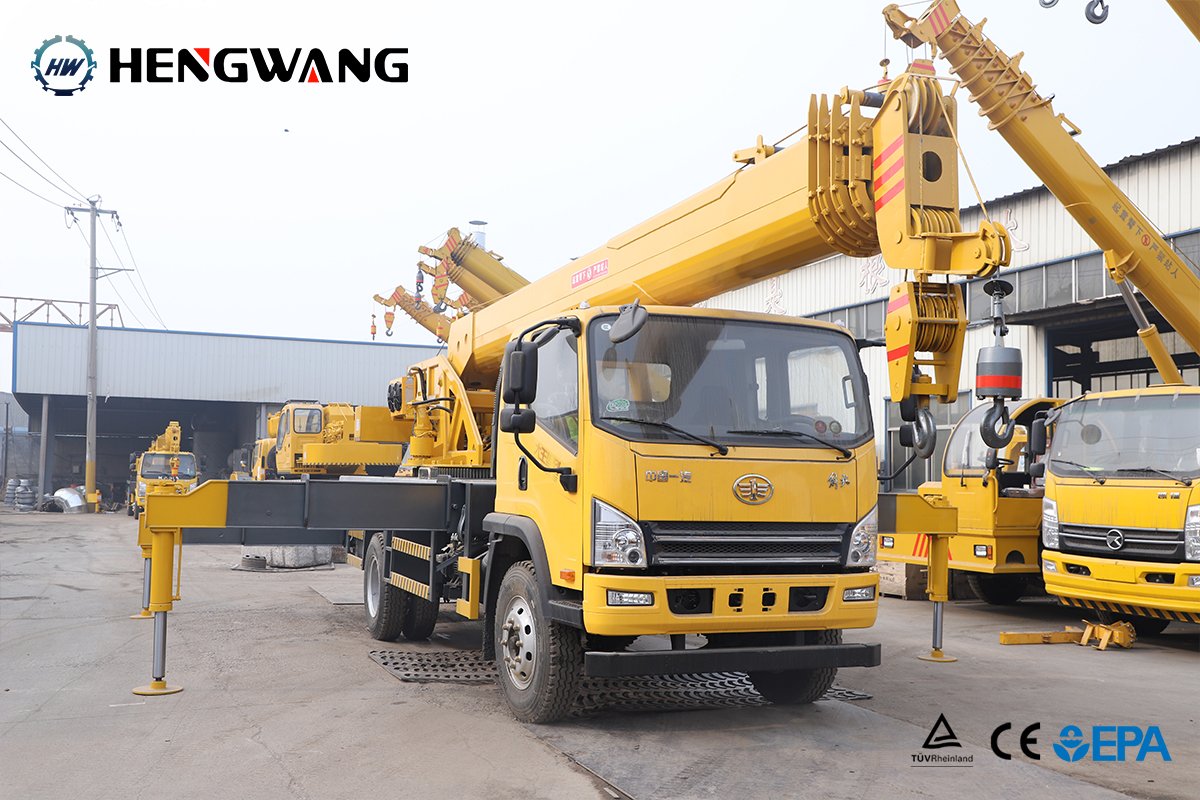

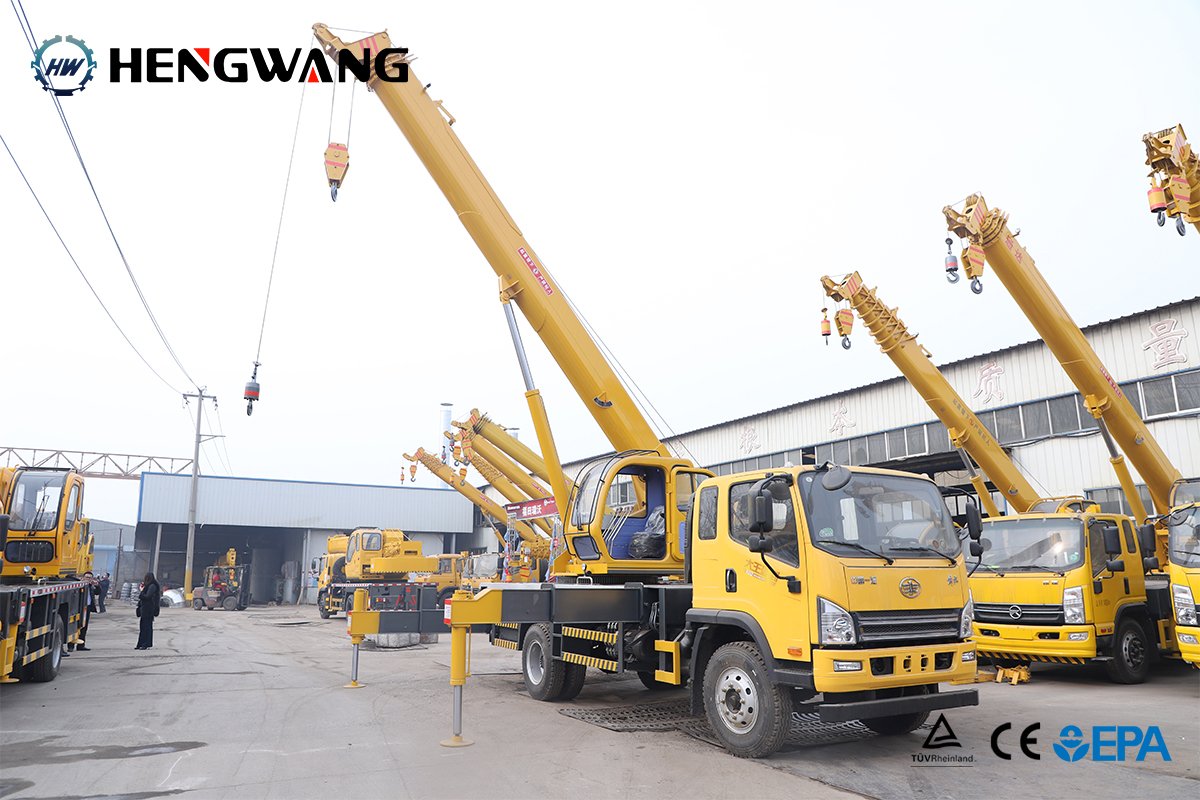

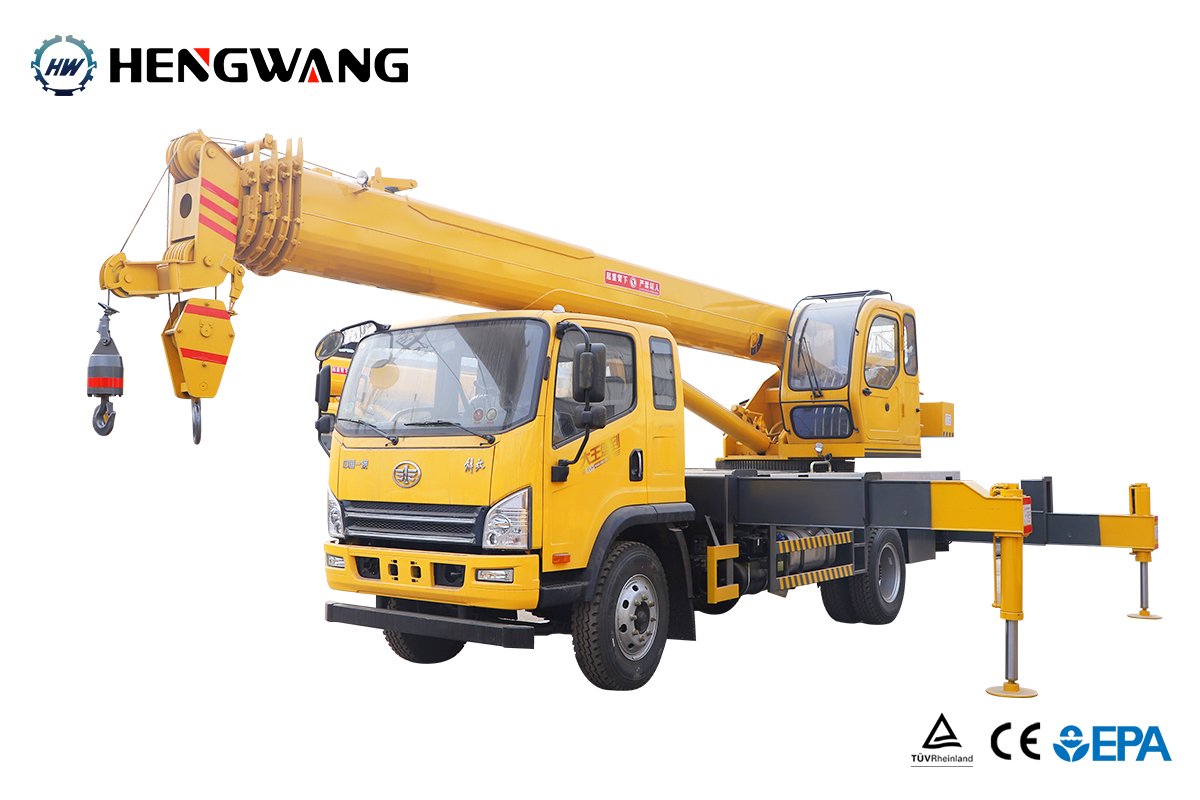

HWYQJF12T Truck Crane
Swing speed: 0-3rap
Engine model: Weichai
Power: 140kw
Engine model: Weichai
Power: 140kw
Product Details
1. The slewing center is equipped with a touch-type electric disc, which can rotate 360 degrees infinitely.
2. Boom telescopic limit marking and automatic stop report, limit switch three insurance.

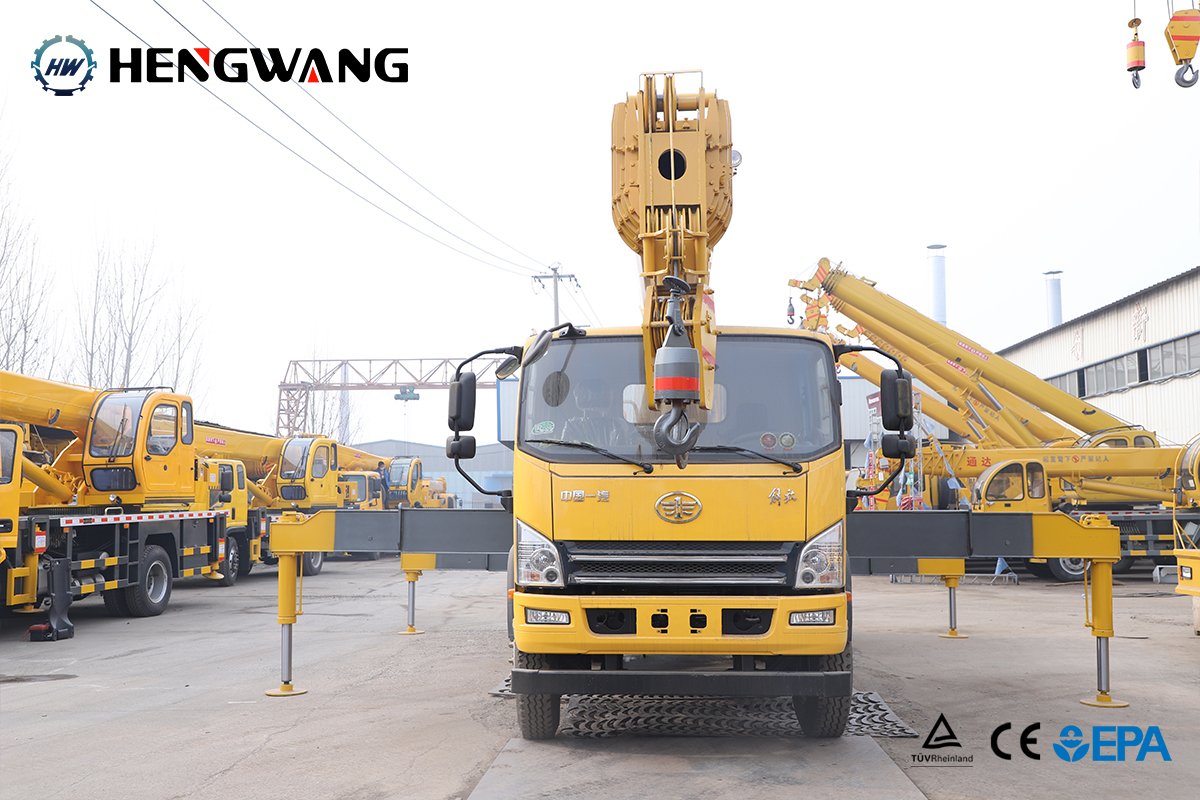

3. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.
4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic
| Model | HWYQJF12T |
| Chassis models | FAW Jiefang |
| Max. loading capacity | 12000kg |
| Crane jib U type | 7.3m*5 section (rope inside) |
| Max. lifting height | 31.5m |
| Lifting speed | Double pumps combined |
| Swing speed | 0-3rap |
| Engine model | Weichai |
| Power | 140kw |
| Tire | 900R20 radial tire |
| Reducer model | Planetary reducer |
| Pivoting support | 1.5m arm rope inside |
| Steering machanism | Hydraulic Power Steering |
