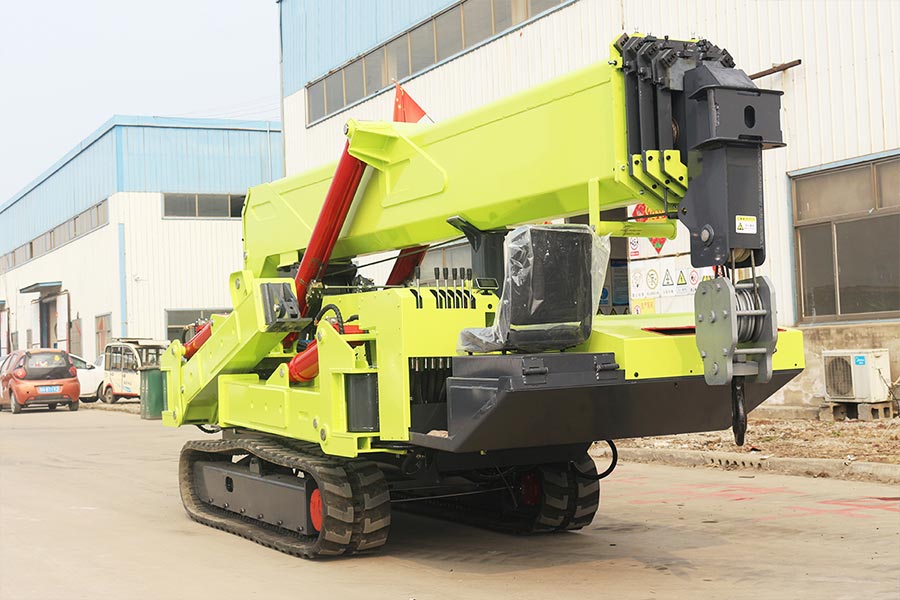

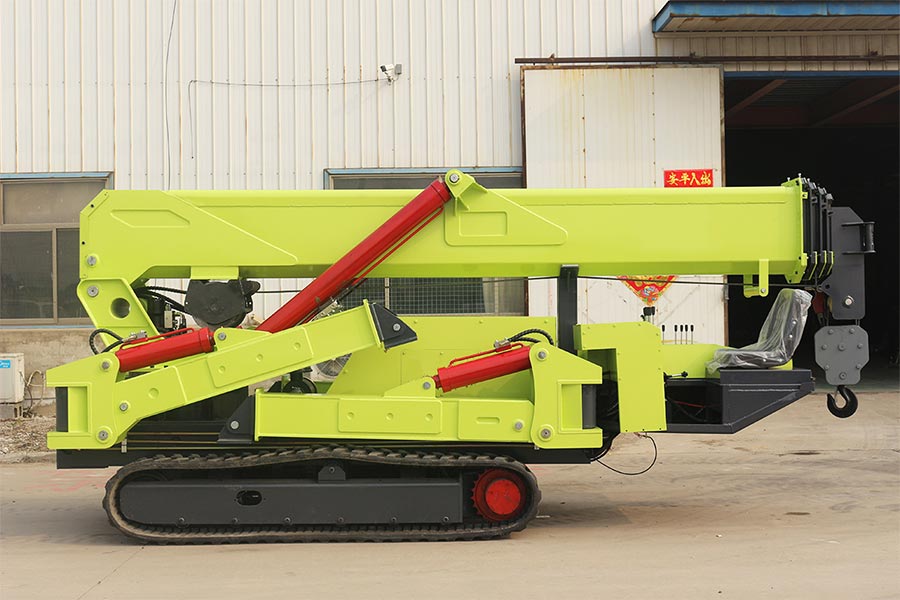

Spider Crane

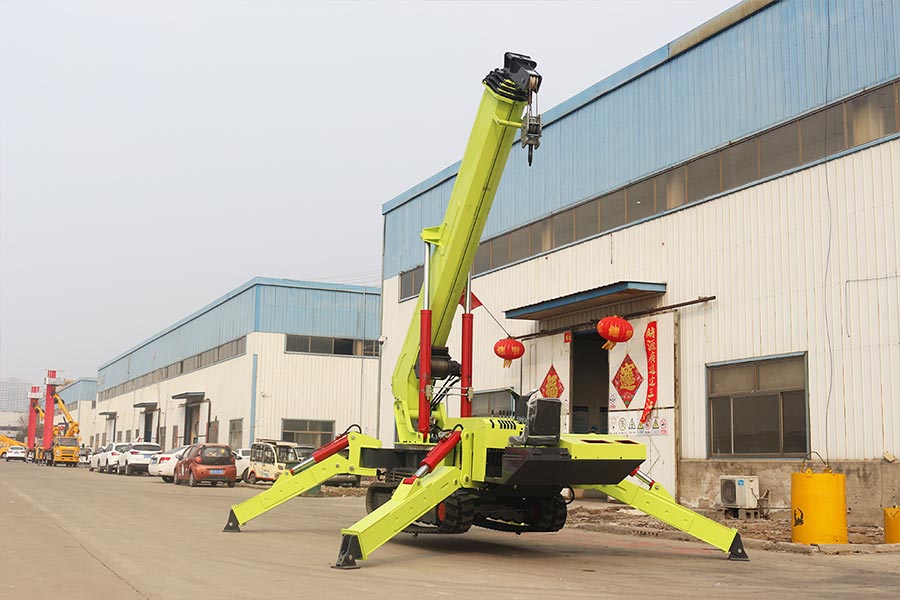

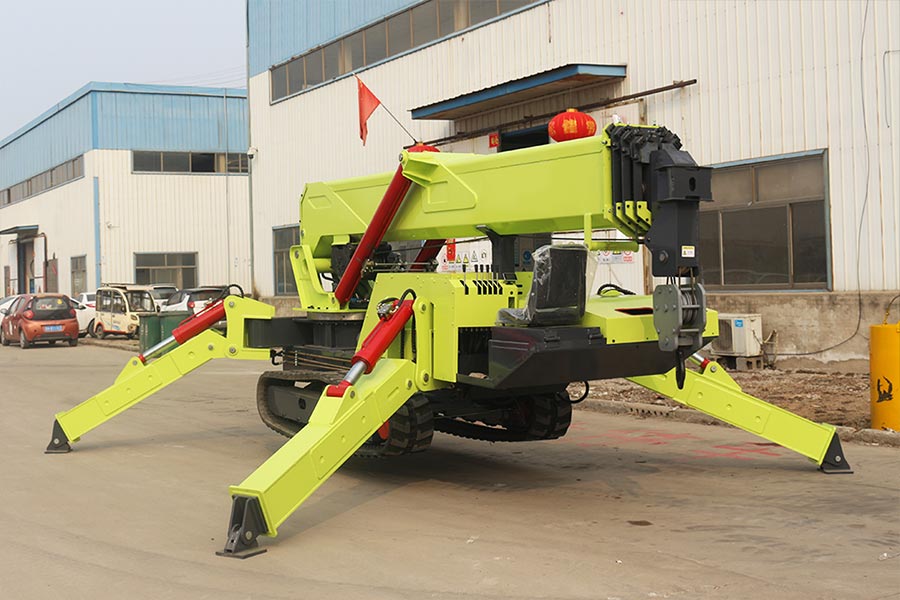

The unrivaled HW1200 is the most popular miniature crane in the industry, thanks to its versatile outriggers that allow the crane to operate on uneven ground and slopes.

Its track mobility allows this small crane to travel over rough terrain, making it ideal for lifting projects across a wide range of industries including glass, steel, lumber and more.

Model	HW1000
Specification	10.0t
Dimension	L5700mm*W1800mm*H2400mm
Machine weight	11500kg

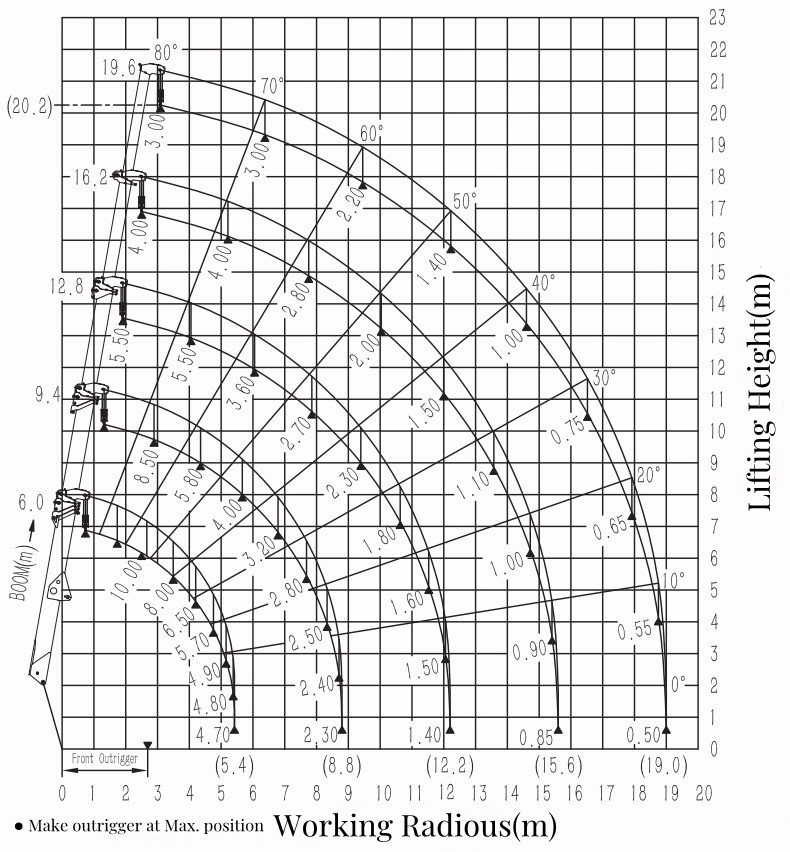

Max working radius	19.8m（0.6ton）/ 22m(0.6ton)
Max lifting height	21m
Standard configuration	Proportional Valve and Proportional Remote control , Diesel engine, Electric motor, Power distribution box, Searcher hook, Storage battery, Black rubber track, EMO switch, Three color lamp, Remote control lamp, Luffing balance valve, Telescopic balance valve, Hook anti-decoupling device, Slewing brake, Winch brake, Outrigger off the ground alarm and automatic stop device, Walking/Outrigger/Boom three-mode interlock system, Extra two sets of filters

Quote now for the best price.
